| 브랜드 이름: | Genyu |
| MOQ: | 100 조각 |
| 가격: | $1.19/pieces 100-999 pieces |

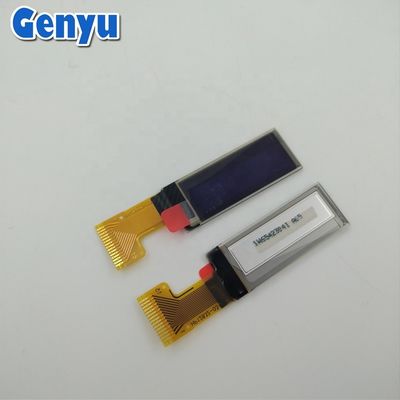

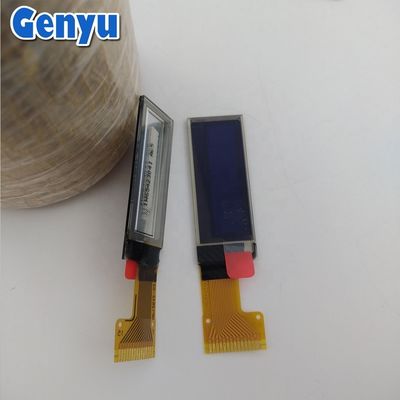

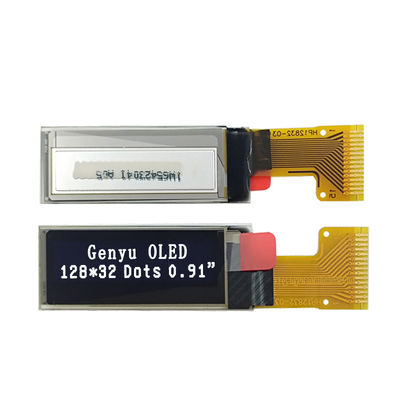

Products: Organic light emitting diode (OLED)
Regular size, standing stock.

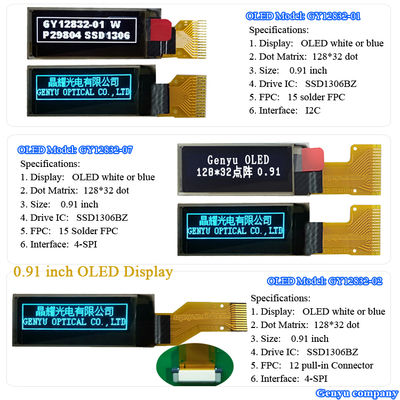

Product number : GY12832-03 white Words
Product number : GY12832-07 Blue Words
1. Features
(1) Display Type : Organic light emitting diode (OLED)
(2) Display Size : 0.91 inch oled
(3) Dot Matrix : 128x32 Dots
(4) Drive IC : SSD1306
(5) Viewing Angle : 160°
(6) Color : White or Blue
(8) Operating Tempeture : -20~70 °C
(9) Storage Tempeture : -30~80 °C

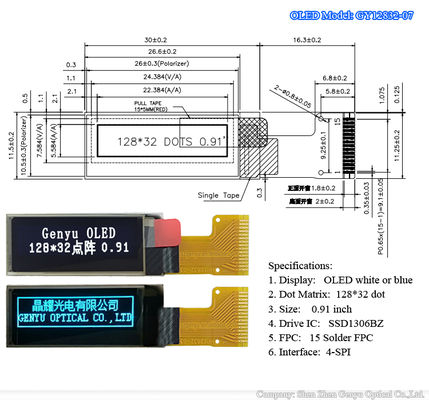

| Structure | LCD + IC + FPC |
| Module Size | 30.00*11.50*3.70 mm |
| VIEwing Area | 24.384*7.584 mm |
| Dot Size | 0.159*0.159 mm |
| Dot Pitch | 0.175*0.175 mm |
| Connection | COG + FPC |
Life Time (120 cd/m 2 ) 10000 - hour
Life Time (80 cd/m 2 ) 30000 - hour
Life Time (60 cd/m 2 ) 50000 - hour
Payment
Please contact us before you make payment.
Payment terms: T/T, Western Union. Paypal....
Delivery
Items will be shipped within 3 working days on payment received.
By DHL/UPS/FedEx/TNT: about 4-9 working days.
By EMS: about 10-14 working days.
By CPAM/HKPAM: about 15-25 working days.
Packaging
1. Anti-static bag or Bubble bag; (For samples)
2. Plastic pallet;
3. Carton box.
1). Datasheets
We will provide detailed datasheets of screen/module/driver IC and application circuit to you.
2). Source Code
We can provide whole source code or initial code to you.
3). Technical Support
We have experienced engineers and they will provide you comprehensive technical service.
4). Customizable
We provide customizable service. For example custom FPC, custom PCB, custom module and so on.
5). Solution
If you need a solution with some special function, tell us,we can meet your requirement.
