| 브랜드 이름: | Genyu |
| MOQ: | 1000 조각 |
| 가격: | $1.95/pieces 1000-4999 pieces |
| Brand Name | Genyu |
| Model Number | GY88128-25 |
| Screen size | 64(W)*41(H)*9(D) mm |
| Module Size | 76(W)x58(H)x19.7(D) mm |
| Screen segment | Segment Custom LCD |
| Control/drive IC | HT1621 |
| Display color/BL LED | WHITE /BLUE/ RED /YELLOW /GREEN /RGB FULL COLLOR |
| Viewing Angle | 6 O' clock LCD LED SCREEN |
| Display mode | TN HTN positive transmissive |
| LCD parameter | duty1/4 bias1/3 |
| LCD parameter | BL I=30MA |
| LCD parameter | VOP=4.2V |
| Operating Temperature | -10~+60℃ |
| View Area | 40.5 * 20.1mm |
| HTN CNI | 1 | DATA | HTN CN2 | 1 | N.C |
| 2 | RW | 2 | FUNCT2 | ||
| 3 | BL | 3 | VDD(5V) | ||
| 4 | CS | 4 | FUNCTION | ||
| 5 | VSS | 5 | ON.P | ||
| 6 | FUNCT2 | 6 | SW2 | ||
| 7 | VDD(5V) | ||||
| 8 | FUNCTION | ||||
| 9 | ON.P | ||||
| 10 | SW2 |

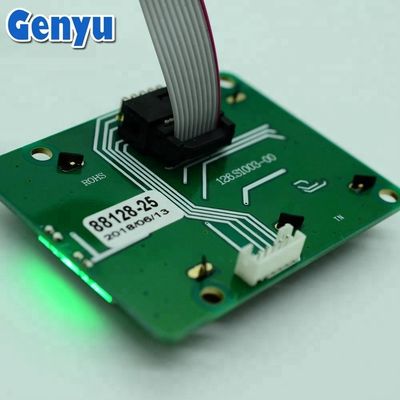

LCD SCREEN BACK SIDE

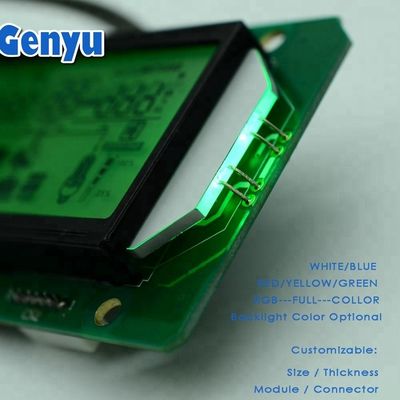

LCD BL (BACKLIGT LED LIGHT SOURCE)
Monochrome LCD displays( TN/ HTN/ STN/ FSTN/ VA types, COG, COB )
Genyu Technology (H K) Limited
Shen Zhen Genyu Optical Co.,Ltd
1. And if it is necessary for you to have technical support in the process of development, we can provide it for you at any time.
2. Good quality and credit is the soul of our company. Before shipment, we will guarantee that the products will be done the aging test and 100% of the visual and electric logging.
3. When the product upgrades, we will notify the related clients in advance, and the upgrading product can be perfectly compatible with the old ones.
4. The warranty period of the product is 12 months.
1. What's the total area and number of LCD's employed by Genyu?
Total area of production site is around 30,000m2; Over 800 personnel in various LCD/LCM Divisions.
2. How does your factory do regarding quality control?
Quality is the priority. We always attach great importance to quality controlling from the start to end.Our factory has gained ISO9001, RoHS, CE certification.
3. What's the MOQ?
For standard model, no strict limits; For customized model, MOQ depends on LCD size
4. What's the lead time of your LCD product?
For standard models, we always have stock or 1~2weeks; 5~6weeks for customized model
5. Can I have a samples?
Genyu can provide you with samples. Free ship cost in China, We have a lot of standard LCD screens, we can recommend LCD for you according to your requirements. Please share your requirements with us.
Custom LCD usually free 5-8 samples.
6. Can I get customize LCD Display?
For sure that OEM service is availiable. Custom LCD usually free 5-8 samples.
Genyu is a factory with 20 years of LCD production experience in China. We can customize LCD, LCM, B/L and FPC, We produce LCD of TN, HTN, STN ,FSTN VA/BTN, LCD Display and touch panel.
7.Can I get technical support for LCD?
We can provide LCD technical drawings, driver IC data, initialization codes and technical support from our engineers.
