제품 세부 정보

집 상품

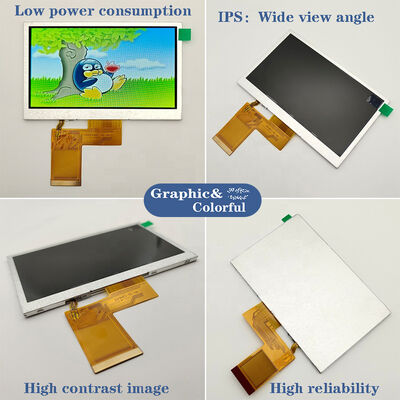

Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle

브랜드 이름:	Genyu
MOQ:	1

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국 광둥

디스플레이 유형:

TFT

디스플레이 크기:

0.96인치~10.1인치

해결:

240*320

드라이버 IC:

ST7789 / ILI9341

시야각:

IPS 전체 보기 각

백라이트 유형:

저전력 소비

인터페이스:

RGB, SPI, I2C, 8080, 6800

FPC 연결:

납땜 또는 커넥터

명암비:

500

휘도:

250CD/m2

모듈 크기:

50x69.2x2.45mm

패널 활성 영역:

43.2x57.6mm

색상 수:

262K

패널 유형:

테네시 / IPS

NTSC 비율:

55%

강조하다:

240*320 Resolution TFT LCD Display

SPI Interface LCD Module

IPS Viewing Angle TFT Display

제품 설명

Custom TFT LCD Display Modules

Genyu TFT Display offers comprehensive LCD solutions with extensive customization options.

TFT LCD Size	Available Options
Display Sizes	0.96", 1.0", 1.06", 1.28", 1.3", 1.44", 1.54", 1.77", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 4.3", 7.0"
View Angle	IPS Full view angle, 12:00, 6:00
Interface	RGB, SPI, I2C, 8080, 6800, serial port, parallel port, Support customization
FPC	Pull-in Connector, Solder Type, Support customization

For detailed datasheets and samples, please contact Erica or click here for more TFT screen options.

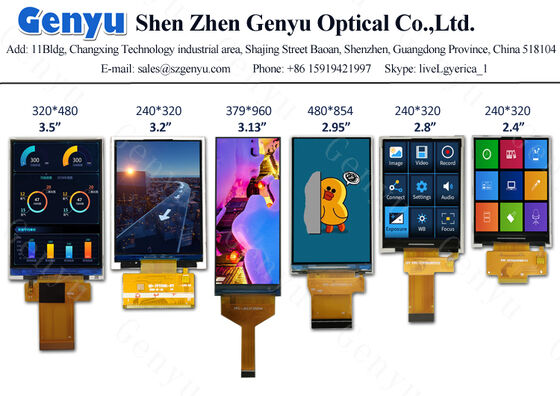

Available TFT Display Models

0.96 inch TFT Display

Resolution: 80×RGB×160

1.06 inch TFT Display

Resolution: 96×RGB×160

1.28 inch TFT Display

Resolution: 240×RGB×240

1.44 inch TFT LCD

Resolution: 128×RGB×128

1.54 inch TFT LCD

Resolution: 240×RGB×240

1.77 inch TFT LCD

Resolution: 128×RGB×160

1.8 inch TFT LCD

Resolution: 240×RGB×284

2.4 inch TFT LCD

Resolution: 240×RGB×320

2.8 inch TFT LCD

Resolution: 240×RGB×320

2.95 inch TFT LCD

Resolution: 480×RGB×854

3.13 inch TFT LCD

Resolution: 379×RGB×960

3.2 inch TFT Screen

Resolution: 240×RGB×320

3.5 inch TFT

Resolution: 320×RGB×480

4.3 inch TFT with CTP

Resolution: 480×RGB×272

7.0 inch TFT LCD

Resolution: 800×RGB×480

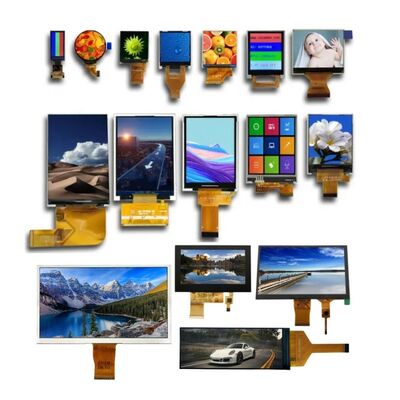

Product Range: Color LCD display, Round TFT display, TFT display, LCD Module, Round Display, 2.4inch TFT LCD, 1.28" display, 4.3 inch TFT LCD, Small 0.96 / 1.3 / 1.54 / 2.0 / 2.4 / 3.2 / 3.5 / 4.3 inch TFT LCD, Round TFT display, RGB LCD touch screen, Color LCD display.

Genyu offers tens of thousands of LCDs for your reference. Please share your requirements with Erica Tan for customized LCD solutions or recommendations based on your specifications.

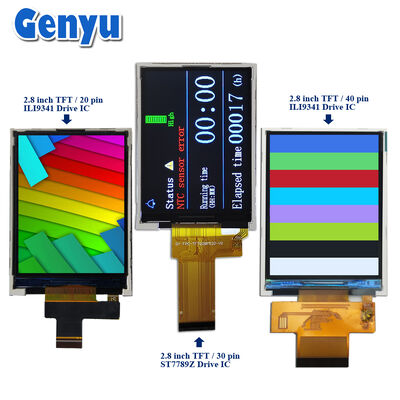

2.8 inch TFT Display

2.8 inch TFT LCD Display Specifications

LCD Size: 2.8 inch
Viewing Direction: 12:00
Resolution: 240×RGB×320
Contrast Ratio: 500
Contrast Ratio: 250 Min
Luminance: 250 cd/m²
Module Size: 50×69.2×2.45 mm
Panel Active Area: 43.2×57.6mm
Driver IC: ST7789V
Interface: MCU 8080 16BIT
Number of Colors: 262K
Panel Type: TN
NTSC: 55%
FPC: 30 Pin connector FPC

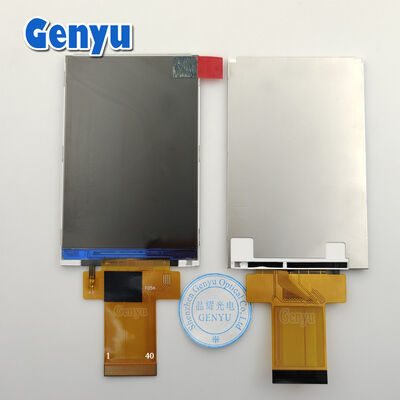

2.8 inch TFT LCD Display (IPS Version)

LCD Size: 2.8 inch
Viewing Direction: IPS
Resolution: 240×RGB×320
Contrast Ratio: 500
Contrast Ratio: 250 Min
Luminance: 250 cd/m²
Module Size: 50×69.2×2.3 mm
Panel Active Area: 43.2×57.6mm
Driver IC: ILI9341V
Interface: SPI
Number of Colors: 262K
Panel Type: IPS
FPC: 20 Pin connector FPC

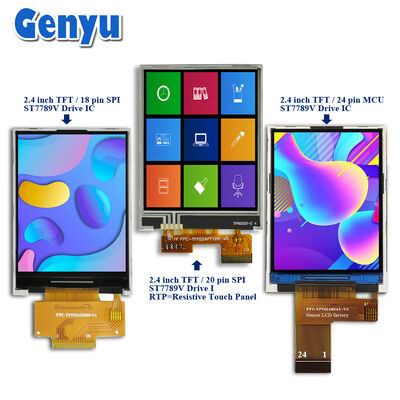

2.4 inch TFT Display

Company Profile

Established in 2003, Shen Zhen Genyu Optical Co., Ltd. specializes in R&D, production, and sales of LCD displays, OLED, and TFT LCD Modules. We provide professional customized LCD Screens including TN, HTN, STN, FSTN, VA (BTN), COG and COB LCD Modules.

Genyu's plant area covers approximately 30,000 square meters with 1,000 employees, including 36 technicians, 16 developers, and 60 quality control specialists. Our core team comprises LCD experts, process engineers, LCM R&D engineers, and B/L and FPC engineers.

Utilizing modern automation plant equipment, advanced technology, and a strong R&D team, we deliver high-quality display solutions.

We design, develop, and produce customized LCD, LCM, B/L, FPC, and other products according to customer requirements. Current annual production capacity reaches 100 million LCD screens, 30 million LCMs, and 40 million B/L units.

Advanced Manufacturing Facilities

Our nearly 6,000 square meter dust-free workshop maintains a cleanliness level of 100k. Facility features include totally closed transfer windows for material handling and air shower systems at workshop entrances to effectively remove dust, hair, and other contaminants, ensuring optimal production conditions.

Products & Services

Products

LCD/TFT/OLED display, touch screen, LCM, COB, COG

Contact our professional sales team with your requirements for prompt response.

Services

Free samples for regular models
Free design drawings
Free logistics quotes

Warranty

Free replacement within 1 year for quality issues
Free replacement for damage during transit

Monochrome LCD Solutions

Custom Segment LCD Display

Genyu has produced tens of thousands of segment LCDs. We offer TN, STN, HTN, FSTN, VA/BTN LCD display technologies with custom design capabilities.

Dot Matrix Graphic LCD Display

Available resolutions include: 96×16, 96×24, 122×32, 132×36, 132×96, 128×32, 128×64, 128×96, 160×32, 160×80, 192×64, 240×80, 128×128, 160×160, up to 320×240 dot matrix LCD displays.
