| 브랜드 이름: | Genyu |
| MOQ: | 1000 |
| 가격: | Rp 77.728-83.028 |
High-quality 3.5-inch TFT LCD screen with 320x480 resolution, supporting both 8-bit parallel and SPI interfaces through a 24-pin connector.
| Feature | Specification | Feature | Specification |
|---|---|---|---|
| TFT Size | 3.5 inch | Interface | 8bit/SPI |
| Display Type | Color TFT LCD | Viewing Angle | 12 O'clock |
| Resolution | 320RGB×480 Pixel | Drive IC | ST7796U |
| LCD Type | TN | Voltage | 2.8V |
| Operating Temperature | -20℃ to +70℃ | Connection | 24 PIN |
| Storage Temperature | -30℃ to +80℃ | LCD Dimensions | 54.46 × 82.94 × 2.20 mm |
| Backlight | 6 LEDs/120mA | Active Area | 48.96 × 73.44 mm |

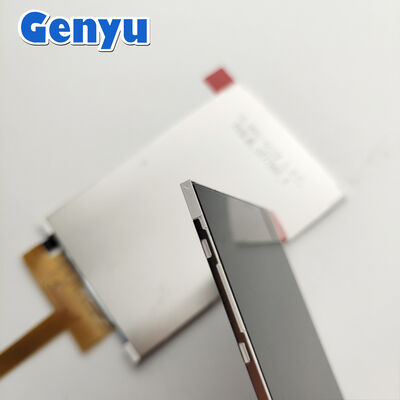

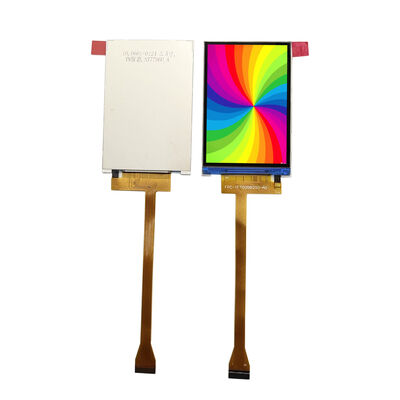

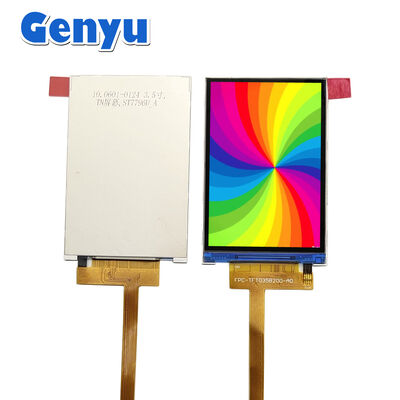

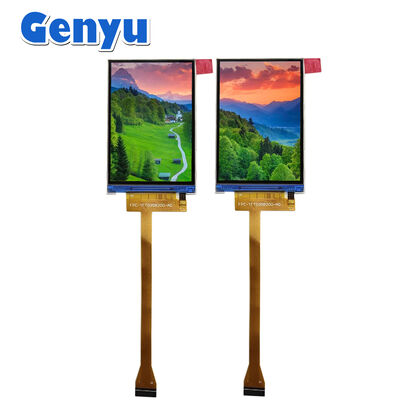

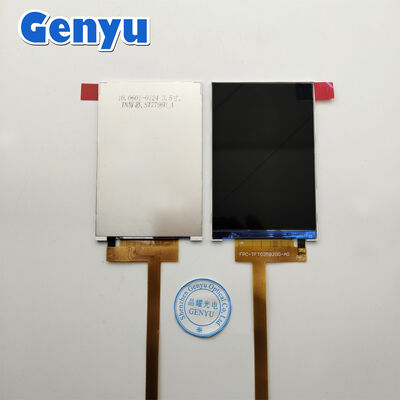

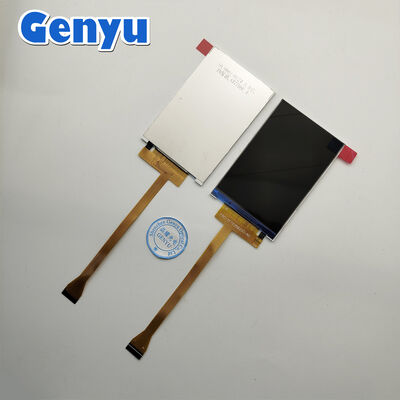

320×RGB×480 resolution 3.5 inch TFT LCD module with resistance touch panel.
T/T, Western Union, Paypal. Please contact us before making payment.
Items ship within 3 working days after payment confirmation:
Genyu specializes in small to medium size LCD display modules including:
Segment & Graphic displays are fully customizable with tooling cost for development and MOQ for bulk orders. OLED & TFT displays feature standard sizes with customizable FPC/interface, touch screen, and backlight options.
Q: Are you a manufacturer or trading company?
A: We are a factory located in Shenzhen and Jiangxi, specializing in TN, HTN, STN, FSTN, VA monochrome LCD, Micro OLED screens, Color TFT display panels, LED backlights, and LCD modules.
Q: Do you offer free samples?
A: For first-time cooperation, samples are charged but the amount is returned during mass order stage. For regular customers, samples can be free.
Q: What is your delivery time?
A: Sample orders: 2-3 weeks. Mass production: 4-6 weeks.
Q: Can you customize LCD or touch screens?
A: Yes, we provide custom services. For LCD displays, we customize backlight brightness and FPC cables. For touch screens, we customize color, shape, cover thickness, and other parameters.
Q: What applications are your products used for?
A: Embedded systems, intercom systems, biometric devices, HMI, smart home, robotics, handheld PDAs, aftermarket automotive, and more.
