| 브랜드 이름: | Genyu |
| MOQ: | 1500개 부분 |
| 가격: | $1.70/pieces 1500-4999 pieces |

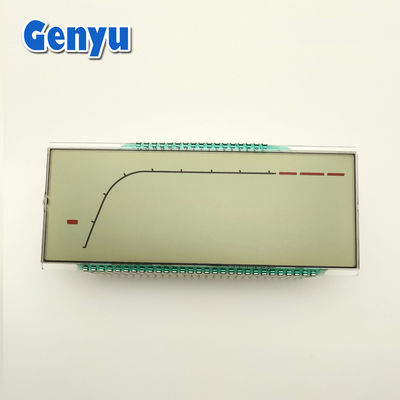

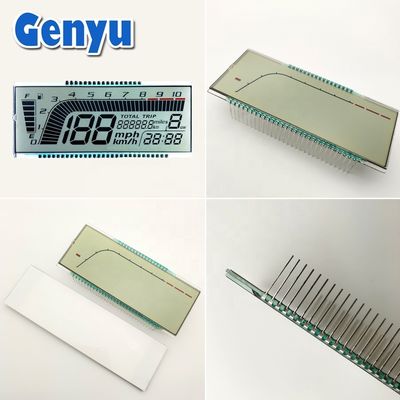

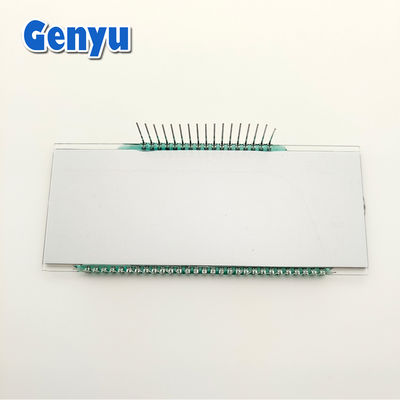

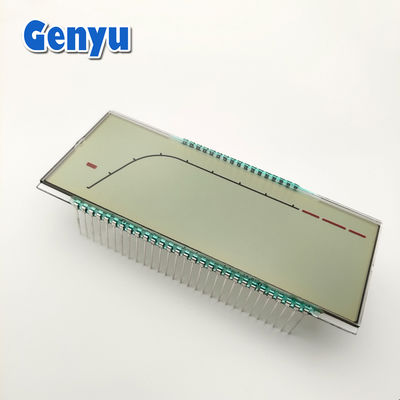

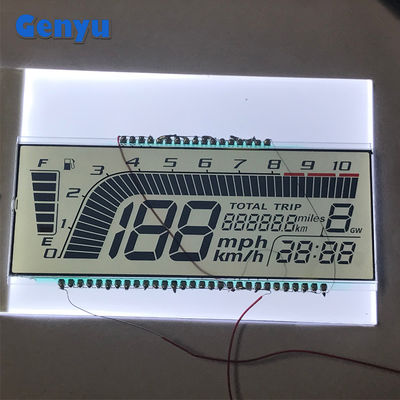

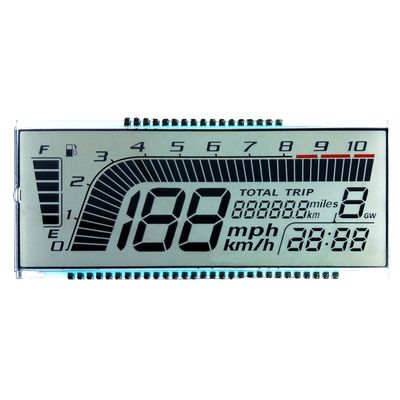

HTN Custom E-bike LCD Display Monochrome 46 Pin Transflective 7 Segment LCD Screen
Model Number: GY-H64356H
Structure: LCD Glass + Backlight + PIN
| NO. | ITEM | SPECIFICATIONS |
| 1 | Product Name | Customized Segment LCD Display for E-bike/Scooter |
| 2 | LCD Type | HTN, Transflective, Positive |
| 3 | Operating Voltage | 5.0V, customized |
| 4 | Operating Temperature | 0~+50℃ |
| 5 | Storage Temperature | -10~+60℃ |
| 6 | Connector | PIN( 46pins), customized |
| 7 | View Direction | 6 O'clock |
| 8 | Backlight Color | White |
| 9 | Outline Dimension | 99.8(W)* 42.0(H)* 2.8(T) mm |
| 10 | VA Size | 96.8(W)* 35.0(H) mm |
More Segment LCD Display Modules maybe you will like:
Customization will be accepted, with free samples after tooling cost.
For more details, pls just contact us, thanks !
| | |
| TN LCD, COG+PIN | HTN LCD, Positive | STN LCD, Negative |
| | |
| VA LCD, White on black | Segment LCD Module, Green | FSTN LCD, White |
custom lcd, segment lcd, custom segment lcd, 7 segment lcd, segment lcd display, segment lcd screen, custom lcd screen
Our Advantages:
1. Professional Technical Support, 24 Hours Service
2. Strict Quality Control, Double Testing
3. Large Daily Production, Faster Leading Time
4. Factory Directly Supply, Competitive Price
1.Q: Are you a manufactory or trade company?
A. We are a professional manufacturer, which specializes in TN, HTN, STN, FSTN, VA/BTN monochrome LCD, Micro OLED Screen, Color TFT Display Panels, LED Backlights, LCD Modules located in Shenzhen and Jiangxi.
2. Q: How can I get the samples?
A: Send inquiry --Offer quotation --Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect
3. Q: How long can I expect to get the sample?
A: Contour drawing: 2-5 days Sample time: 12-15 business days.
4. Q: Can I get a lower price of lcd display?
A: Yes, cheaper price with bigger/larger quantities order.
5. Q: How to customize a new lcd module?
A: Sure. Just give us messages of your specifications/demand and we will draw for you, Or send us your LCD drawing, then we will check for you.
6. Q: What is the minimum order quantity?
A: All our products have MOQ requirements, please contact our salesman for detailed information.
7. Q: How long of mass production?
A: Usually 25-35 business days. It depends on different order quantities and part numbers.
